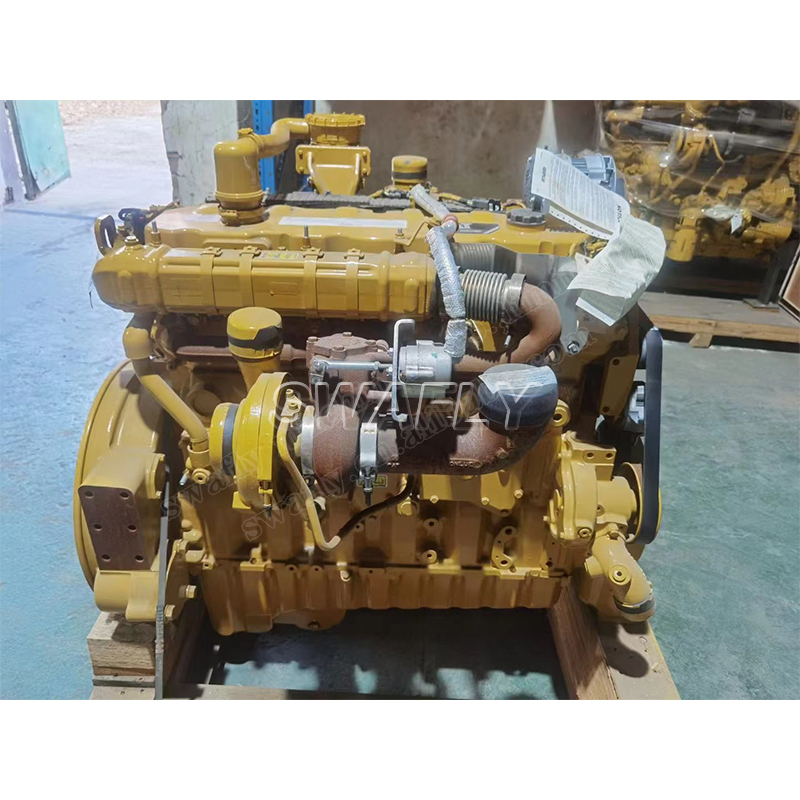

Caterpillar C9.3 Diesel Engine Excavator Engine
Caterpillar C9.3 Diesel Engine Excavator Engine
Caterpillar C9.3 Diesel Engine Excavator Engine
Caterpillar C9.3 Diesel Engine Excavator Engine
Caterpillar C9.3 Diesel Engine Excavator Engine
Caterpillar C9.3 Diesel Engine Excavator Engine
Caterpillar C9.3 Diesel Engine Excavator Engine

Caterpillar C9.3 Diesel Engine Excavator Engine

The Cat® C9.3 ACERT™ diesel engine is a high-performance power source with technologies designed to improve fuel economy and reduce emissions, without sacrificing dependability or power. This rugged engine is ideal for applications that require a durable and reliable power source.

Views

Views

Caterpillar C9.3 Diesel Engine Excavator Engine

Interview

Select the number of specifications

Please check the product information you want!

Product Detail

Caterpillar C9.3 Diesel Engine Excavator Engine

The Caterpillar C9.3 engine assembly is one of the most powerful engines available from the Caterpillar family of industrial engines. This engine is specifically designed for industrial applications, including marine, on-highway, and off-highway applications. Featuring advanced fuel injection technology and an exceptional power-to-weight ratio, this engine delivers reliable performance in the toughest conditions.

Model:C9.3 Category: Engine assy
Condition: Original new&Original new MOQ: 1 piece
Production Capacity: 1000pcs /Month Standard or Nonstandard: Standard
Guarantee:  We will check the Engine assy and send detail pictures to buyer to confirm before shipping.



Parameter of Excavator Engine Motor C9.3 Whole Engine

Power Range 375-476 bhp (280-355 bkW)
Speed Range 1800, 2100, 2300 rpm
Rated Engine Speed 1800, 2100, 2300 rpm
Emissions IMO II, U.S. EPA Tier 3, China Stage II
Configuration In-line 6, 4-Stroke-Cycle Diesel
Displacement 9.3 l
Aspiration Turbocharged-aftercooled
Governor Electronic
Bore 115 mm
Stroke 149 mm
Refill Capacity Lube Oil System w/oil filter change: 24.5 L (6.5 gal)
Oil Change Interval 500 hrs
Flywheel Housing SAE No. 1 (113 teeth)
Rotation from Flywheel End Counterclockwise
Cooling Heat exchanger and separate or combined keel cooled options
Engine Dry Weight - Approximate 945-1122 kg (2083-2474 lbs)

Features of C9.3 Diesel Engine

The engine assembly's base is composed of a heavy-duty cast iron cylinder block and air-orifice fuel injection system. This configuration allows for precision fuel delivery and mixture control. The block also features thick-walled sleeves and coolant passages to keep the engine cool and resilient in high-demand applications. The C9.3 is available in different configurations, including a two-valve or four-valve version.

The engine is also equipped with hardened steel fuel injectors, an electronic control unit (ECU) that offers precision fuel injection timing, and a turbocharger and wastegate for further optimization. When used with a suitable turbocharger, the engine assembly can reach a maximum torque of 1025 Nm. Additionally, it features high-flow intake valves, special pistons, an oil sump, and a heavy-duty crankshaft.

The C9.3 also includes Caterpillar's Advanced Combustion Technology (ACT), which offers improved fuel economy, reduced emissions, and superior torque delivery compared to older diesel engine designs. The engine assembly also meets the emission standards of the EU Stage IIIA and the U.S. EPA Tier 3 requirements.

As far as maintenance, the engine features a comprehensive set of filters and control systems to ensure that its fuel system remains clean and its components remain intact. The lubrication system also features a full-flow oil filter, heaters to keep the oil's temperature consistent, and a centrifugal filtration system.

The C9.3 is the ideal choice for industrial applications such as power generation, pumps, marine vessels, and rail and construction machinery. This engine offers reliable power and fuel efficiency without sacrificing performance, making it one of the most versatile options in Caterpillar's engine lineup.

Caterpillar C9.3 Diesel Engine Excavator Engine



C9.3 Caterpillar Engine Machine - Swafly Machinery

Swafly Machinery provides capacity and experience for 100-800 tons of mining machinery parts, excavator hydraulic pump, final drive motor, swing device, main control valve, and undercarriage parts including:
hitach : EX1200 /EX1900 /EX2500 /EX3600 /EX5500 /EX8000
komats : PC1250 /PC2000 /PC4000 /PC5500 /PC8000 /D475
cater : CAT 374F /CAT390F /CAT6020B /CAT6050 /D9 /D10 /D11
The company takes advantage of resources, absorbs the technology and experience of leading engine manufacturers, establishes maintenance workshops, develops mechanical dismantling, engine, and hydraulic system assembly maintenance and regeneration platforms, and carries out a complete machine and parts renewal business. In addition, timely develops cost-effective OEM or high-quality aftermarket products and provides overseas customers with the full range of aftermarket services.
We welcome overseas machinery buyers to contact us.

SWAFLY MACHINERY CO.LIMITED specializes in China's professional excavator parts and mining equipment parts. Founded in 2009, Based on more than 15 years of endeavor and experience, we can supply a quality-trusted full range of machinery engines for KUBOTA/ YANMA/ Perkn/ CAT/ Cummin/ Komats/ Isuz/ Mitsubishi/ Volvo/ Doosan brands. They are widely used in construction machinery equipment, excavator, generator set, industry, marine, and agricultural tractor machinery. The company sells over 3000 set machinery engines worldwide, including in the USA, CANADA, the UK, Mexico, Russia, Australia, Turkey,Netherlands, Kazakhstan, Mongolia, Indonesia, South America, and South Africa.
